Passive Electronic Lock

A passive electronic lock is a type of advanced locking system that operates without the need for internal batteries or external power sources, setting it apart from conventional smart locks or fully electronic locks. Unlike traditional electronic locks that rely on continuous power from batteries or a direct connection to an electrical grid, passive electronic locks harness external power supplied by the key itself to perform authentication, unlocking, and logging functions.

In essence, the lock mechanism remains purely mechanical, but it is enhanced by an embedded electronic core capable of performing encryption and authentication tasks. When an authorized electronic key interacts with the lock, it supplies the necessary energy to power the electronic core temporarily. This interaction allows the key and lock to exchange encrypted information, validate permissions, and execute unlocking operations—all without requiring the lock itself to store or consume power independently.

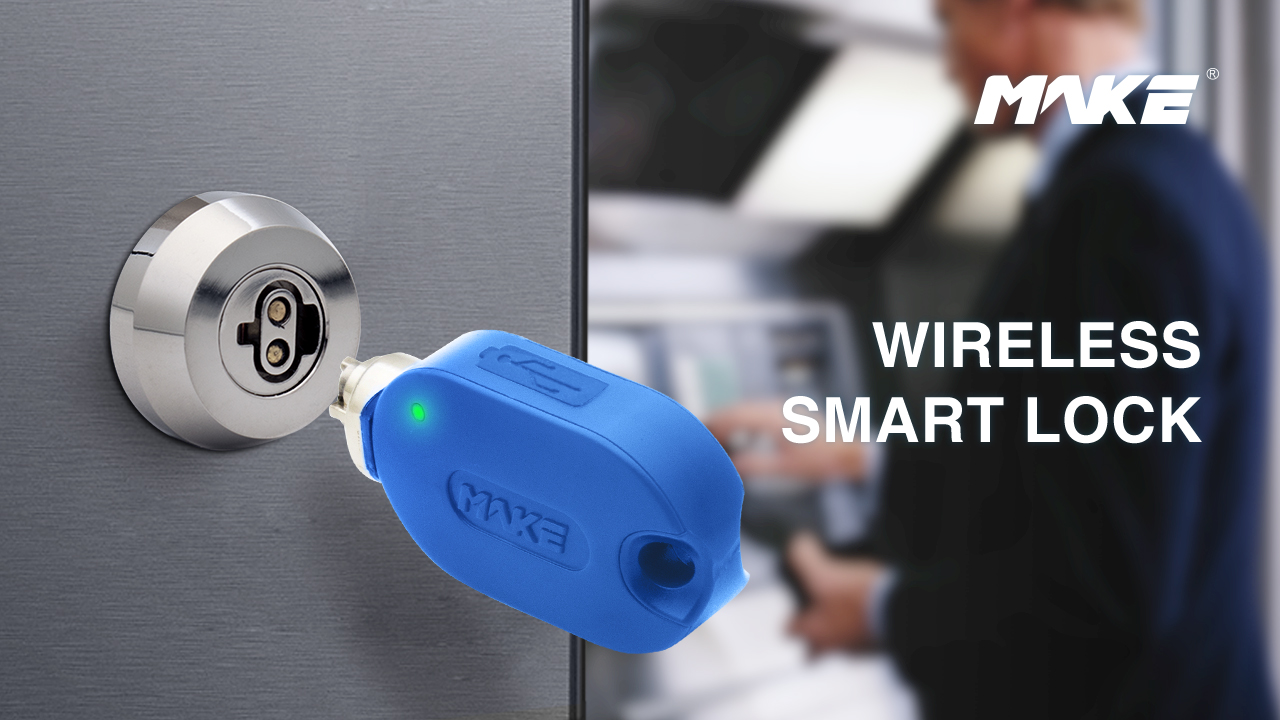

Passive electronic locks often utilize low-energy communication methods such as infrared (IR) transmission, RFID, or contact-based electronic interfaces. Among these, infrared communication is particularly common due to its reliability and energy efficiency. For example, in MAKE’s passive electronic lock, infrared signals are transmitted through metal contacts between the key and the lock core. This method ensures stable communication even in challenging environments, such as extreme temperatures, icy conditions, or exposure to moisture. By minimizing communication failures, passive electronic locks prevent accidental unlocking or failed access, which is critical in high-security environments.

The electronic core embedded in the lock typically contains an encryption chip that handles authentication and permission verification. The key, equipped with its own power source and memory, provides the energy to temporarily activate the lock’s electronic system. Once the verification is complete, the lock either grants access or denies entry based on the programmed permissions stored within the key and lock memory.

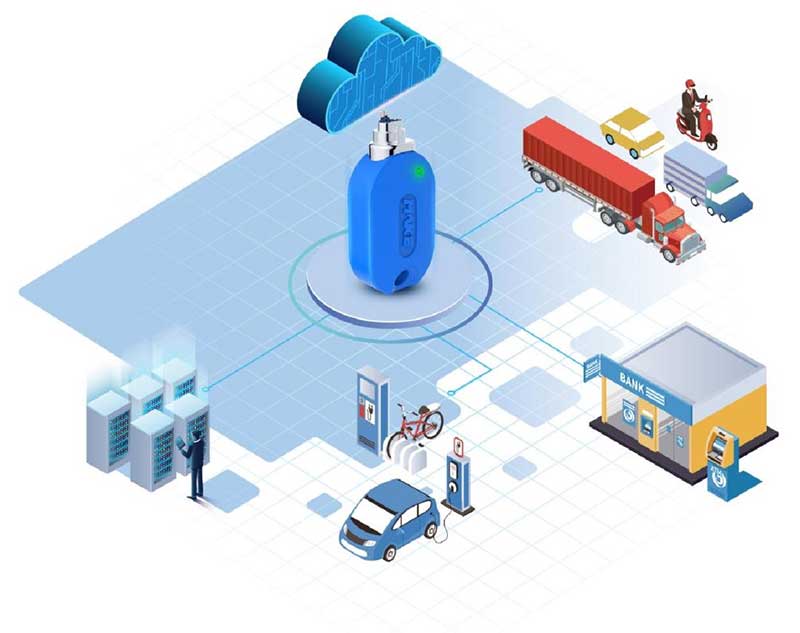

Passive electronic locks are highly versatile and are increasingly deployed in industries where security, access control, and operational efficiency are paramount. Their application spans data centers, telecommunications, finance, retail, logistics, and public infrastructure. Below, we explore several common use cases:

In data centers, physical security is a critical concern, and passive electronic locks offer a reliable solution:

Cabinet Locking: Each server cabinet can be secured with a passive electronic lock, allowing only authorized personnel to gain access. This prevents unauthorized tampering, data breaches, or malicious intrusions. The lock records each opening and closing event, creating a verifiable access history.

Servers and Network Devices: Passive electronic locks can also be installed on server racks and critical network devices. Only personnel with programmed keys can power on or access these devices, ensuring the integrity of sensitive data and preventing operational disruption.

Access Control Integration: Passive electronic locks can seamlessly integrate with larger access control systems. Facilities can grant temporary or permanent access to personnel based on their roles, while all interactions are logged for audit purposes.

Telecommunication base stations, routers, and switching devices form the backbone of modern communication networks. Securing these critical assets is essential:

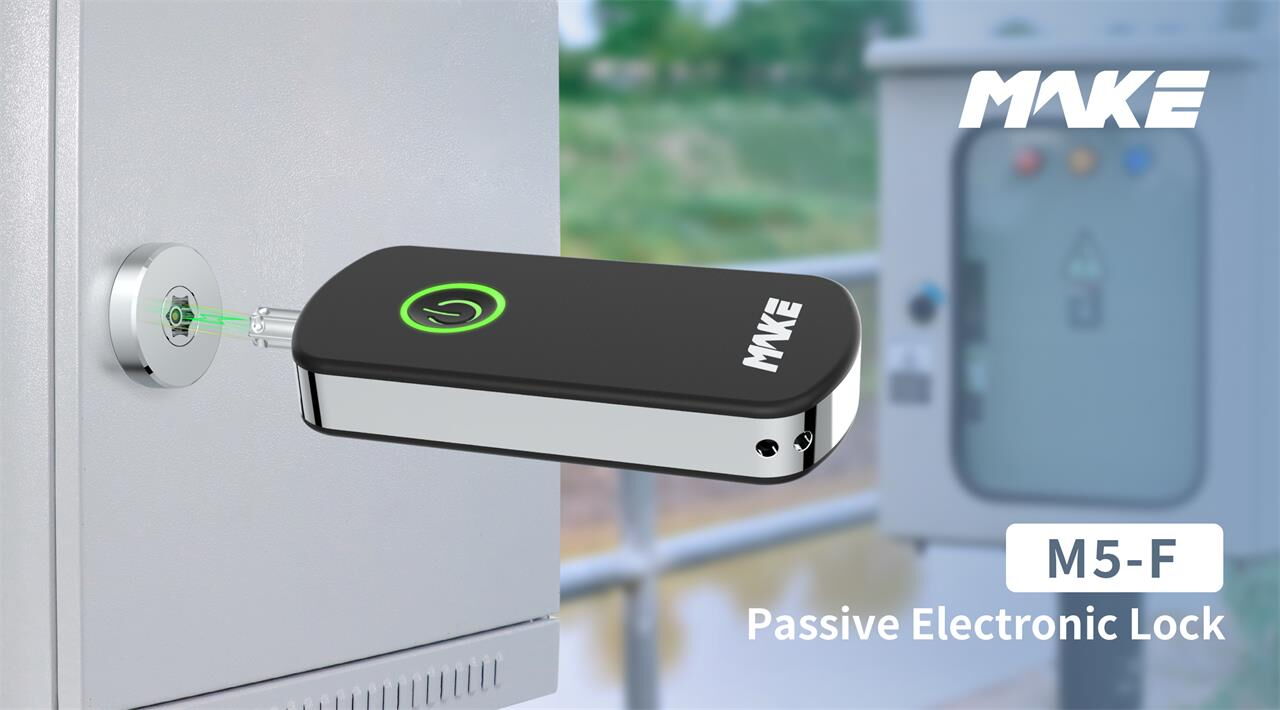

Base Station Security: Passive electronic locks help secure telecom cabinets and enclosures, allowing only authorized engineers to perform maintenance or adjustments.

Operational Continuity: By controlling access to key components, these locks ensure that the communication network remains reliable and uninterrupted, minimizing the risk of downtime caused by unauthorized interference.

Passive electronic locks are increasingly used in financial and retail sectors:

ATMs and Cash Handling Equipment: Electronic keys provide access only to authorized staff, ensuring secure cash handling while maintaining detailed logs of all access events.

Vending Machines and Intelligent Terminals: These locks safeguard inventory and operational controls, preventing theft or tampering. Temporary access permissions can be granted to service personnel without compromising overall security.

In modern logistics operations, secure storage and controlled access are critical:

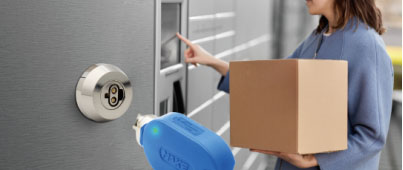

Parcel Lockers: Express delivery cabinets equipped with passive electronic locks ensure that only authorized couriers or customers can retrieve packages. Access can be scheduled and tracked in real-time.

Supply Chain Security: Passive electronic locks enhance the security of storage units, warehouses, and transit containers, preventing unauthorized tampering during transportation.

Intelligent Terminals: Kiosks, public charging stations, and ticketing machines can employ passive electronic locks to control maintenance and cash collection access.

Smart Home and Office Systems: Passive electronic locks are ideal for controlling restricted access areas, such as IT rooms or confidential storage, where reliability and low maintenance are essential.

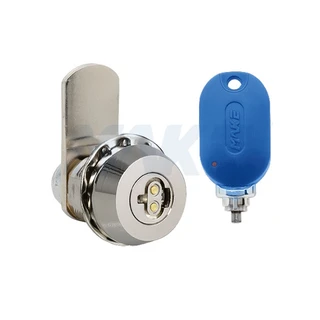

A passive electronic lock typically consists of three main components: the lock body, the smart key, and the management system. Each component plays a critical role in ensuring secure, reliable, and efficient access control.

The lock body of a passive electronic lock is fundamentally mechanical but enhanced with a passive electronic core. Key features include:

No Independent Power Source: The lock does not contain internal batteries or rely on external wiring. Power is supplied exclusively by the electronic key.

Embedded Encryption: The lock core contains an encryption chip that securely handles authentication and permission verification.

Mechanical Reliability: Since the lock retains its mechanical functions, it continues to operate even if the electronic system temporarily fails, ensuring continuous security.

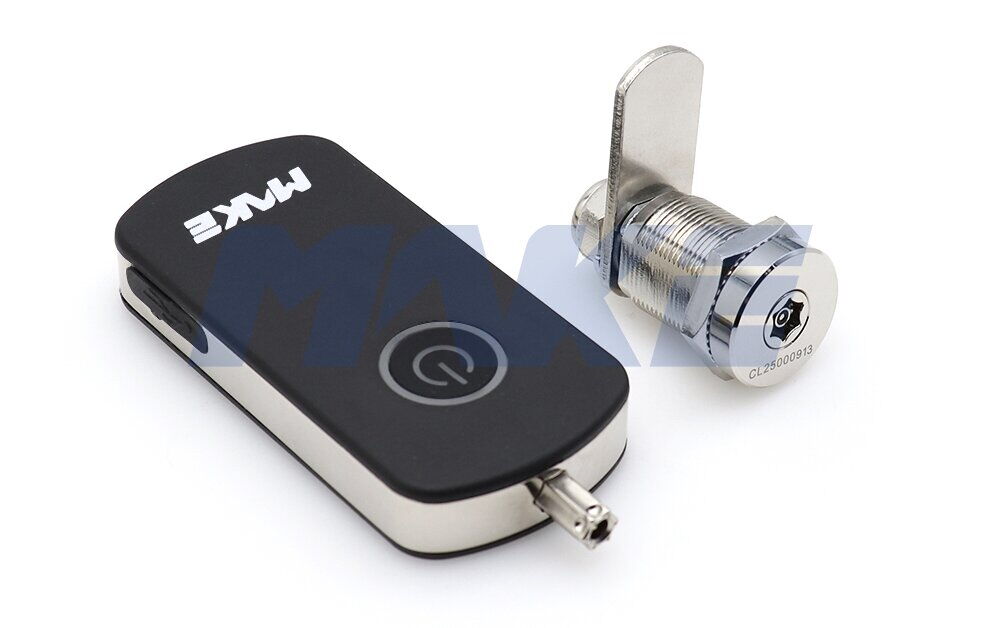

The smart key is a handheld device that provides the energy and authorization needed to operate the lock. Its main functions include:

Electronic Authorization: The key stores permissions and lock information, allowing it to unlock specific locks based on programmed access rights.

Energy Supply: The key supplies the necessary power to activate the lock’s electronic core during each interaction.

Event Logging: Each operation performed by the key is recorded, including timestamps, user identification, and lock status, enabling complete traceability.

Battery and Circuitry: Smart keys contain batteries, memory chips, and circuits to manage communication and record access events.

A centralized management system is used to coordinate multiple locks and keys across a facility. Its capabilities typically include:

Customer File Management: Track all authorized personnel, key assignments, and lock information.

Daily Operation Management: Monitor access events, temporary permissions, and scheduled access changes.

Statistical Analysis: Generate reports on usage patterns, potential security incidents, and lock performance.

System Control: Administer user rights, update lock firmware, and manage the overall security infrastructure efficiently.

Passive electronic locks combine the security of mechanical locks with the advanced features of electronic systems, providing numerous benefits:

Each key can be programmed to open only designated locks, preventing unauthorized personnel from accessing restricted areas. This selective access enhances security across sensitive sites such as data centers, telecom stations, and financial facilities.

All access events are automatically recorded, including the user, time, and lock status. These logs provide accountability, aid in audits, and support investigations if a security breach occurs.

Unlike traditional locks, passive electronic locks eliminate the need for costly rekeying. If a key is lost or an employee leaves, there is no need to replace the lock itself; access permissions can simply be updated via the management system.

Organizations can issue temporary access permissions for contractors, maintenance personnel, or visitors. Access schedules can be precisely defined and automatically enforced by the lock system.

Because the lock does not require internal batteries or wiring, maintenance requirements are significantly reduced. The lock remains functional over extended periods without the risk of power depletion affecting security.

Passive electronic locks can be incorporated into broader access control networks. By combining mechanical reliability with electronic intelligence, these locks provide a seamless, secure, and flexible access solution.

The practical operation of a passive electronic lock combines simplicity with high security. When an authorized electronic key is inserted into or brought near the lock:

The key supplies power to the lock’s electronic core.

The lock and key exchange encrypted data to verify permissions.

Upon successful verification, the lock grants access and records the event.

If the key is unauthorized, access is denied, and the attempt is logged.

This operation ensures that even in environments with harsh conditions—such as extreme temperatures, moisture, or vibration—the lock remains functional and secure.

Passive electronic locks represent a powerful evolution in access control technology. By combining the reliability of mechanical locks with the intelligence of electronic systems, they provide robust security, detailed accountability, and operational flexibility without the need for batteries or external wiring.

From securing critical data centers and telecommunications equipment to protecting financial terminals, vending machines, and logistic storage, passive electronic locks are increasingly indispensable in modern security infrastructure. With controlled access, audit logging, temporary scheduling, and maintenance-free operation, they offer a cost-effective, efficient, and secure solution for organizations of all sizes.

As industries continue to demand higher security and smarter access control, passive electronic locks are set to become a standard in environments where both reliability and advanced functionality are required. They represent a seamless integration of mechanical durability and electronic intelligence—a true innovation in modern lock technology.
