Are All Furniture Cam Locks the Same Size? The Essential Guide

When putting together a flat-pack dresser or repairing an office cabinet, one small component often makes a big difference—the cam lock. While they may seem like simple metal cylinders, cam locks are vital for securing panels and holding furniture together. If you've ever tried replacing one, you've probably asked yourself: Are all furniture cam locks the same size?

The short answer is no, they’re not all the same. In fact, cam locks vary widely in size, type, and function. This guide walks you through the essential differences, how to measure them, and how to ensure you're using the right cam lock for your furniture project.

Before diving into sizes, it helps to understand what a cam lock is and how it works. A cam lock is a mechanical fastener that consists of two main parts:

A cylindrical body that fits into a pre-drilled hole in a piece of furniture or cabinet.

A cam, which is a flat or curved metal tail that rotates to lock or unlock the mechanism.

When the lock is turned—either with a key, coin, screwdriver, or hex wrench—it rotates the cam to engage with the panel or adjoining piece. This creates a firm, secure fit between components. Cam locks are commonly found in:

DIY and flat-pack furniture

Office filing cabinets

Lockers and mailboxes

Kitchen cupboards

Secure storage containers

At a glance, cam locks may look like standard hardware. But when it comes to replacement or assembly, size becomes a crucial factor. Using the wrong size can result in:

Loose or insecure connections

Damaged panels or stripped holes

Misaligned doors or drawers

Inability to fully engage the lock

That’s why knowing what size cam lock you’re dealing with—and what you need—is so important. Furniture manufacturers design locks for specific panel thicknesses and applications, and these measurements aren’t always interchangeable.

The most critical measurement of any cam lock is its cylinder length. This is the portion of the lock body that passes through the panel. The length determines whether the cam lock will properly reach through the material and engage the locking mechanism.

Here’s a breakdown of the most common sizes:

Always match the cylinder length to the thickness of your panel. Too short, and the cam won't engage. Too long, and the cam may not hold securely.

This is the diameter of the hole where the cam lock cylinder fits. While many furniture locks use a standard 2-1/8" (54mm) keyhole, there are smaller and specialty options. It's crucial to measure this if you’re retrofitting or replacing a lock in an existing panel.

Backset refers to the distance from the edge of the door or panel to the center of the keyhole. Common sizes include:

2-3/8" (60mm)

2-3/4" (70mm)

For some specialty locks, you might find 2" or even 5" backsets, especially on older furniture or high-security cabinetry. Mismatched backsets can affect both functionality and aesthetics.

The cam—the rotating metal tail—can come in different shapes:

Flat: Basic design for most standard furniture.

Offset: Slight bend to improve leverage and grip.

Curved: Common in mailboxes or security panels.

The rotation angle is another key factor. Most cams rotate either 90° or 180°. A cam designed for 180° rotation might not function correctly if installed where 90° motion is needed, and vice versa.

If you’re replacing a cam lock in a piece of furniture, follow this process to ensure a proper match:

Use a screwdriver or wrench to unscrew the retaining nut on the back of the panel.

Gently slide the lock cylinder out of the hole.

Use a ruler or caliper to measure from the cam face to the threaded end.

Note if the threads run full length or just partially.

Examine the cam’s shape (flat, offset, or curved).

Measure the length of the cam tail and note the rotation angle.

Measure the hole in the furniture panel to determine the proper diameter for a replacement.

Measure from the edge of the panel to the center of the hole.

With all these measurements in hand, you can confidently source a matching cam lock.

To some extent, yes—but there are important limitations.

What You Can Adjust:

You can sometimes use a longer cylinder if it doesn’t obstruct internal components. Some longer cylinders can be trimmed if needed.

Shorter locks may work in thin materials, provided the cam still engages securely.

What You Can’t Ignore:

A cylinder too thick or too thin can compromise the connection.

Wrong keyhole diameter will require drilling or adapter solutions.

Incorrect backset could mean the lock won’t align with the latch or strike plate.

Different cam shapes or rotation angles may cause malfunction or jamming.

Not all cam locks are created equal. Here are the main categories:

Used in most DIY furniture and cabinetry

Simple metal tail for locking

Typically operated with a screwdriver or key

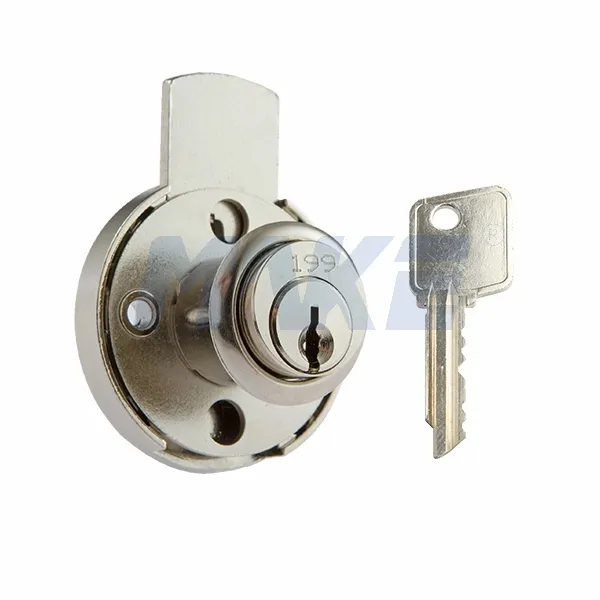

Used in filing cabinets and tool drawers

Provide stronger engagement with frames

Often key-operated

Found in vending machines, coin boxes, and mailboxes

Feature a tubular key for added security

High resistance to tampering and drilling

Specifically for ready-to-assemble (RTA) furniture

Often operate with a Phillips screwdriver or Allen key

Designed for quick assembly and disassembly

Once you've gathered the right measurements and specs, you’ll want to find a reliable source for purchasing. Here are your options:

Great for standard sizes and quick fixes

Staff may help identify what you need

Limited to common models

Amazon, eBay, Alibaba offer a huge variety

Useful for finding obscure or discontinued locks

Always double-check product specs

Best for matching branded or proprietary furniture

May require part numbers or model info

Usually guarantees compatibility

So, are all cam locks the same size? Definitely not. With variations in length, diameter, rotation, and application, the only way to get it right is to measure carefully and match accordingly.

Whether you’re assembling a new bookcase, upgrading a filing cabinet, or fixing a worn-out drawer, understanding the distinctions between cam lock sizes and types will help you avoid costly mistakes and frustrating delays.

Key Takeaways:

Cam locks are not one-size-fits-all.

Measuring your old lock’s cylinder length, cam shape, backset, and keyhole size is essential before buying a replacement.

There are multiple cam lock types tailored to different levels of security and furniture applications.

Always source replacements from reputable vendors and verify compatibility.

With this knowledge, you’re ready to tackle any cam lock-related project with confidence and precision. Whether you're a casual DIYer or a seasoned furniture builder, knowing your hardware is the first step toward professional-quality results.
