In financial security, cash box locks must provide both security and usability. Disc detainer locks are preferred for their structural advantages, but their quality varies significantly in the market:
Security Risks: Non-certified locks have a mutual opening rate of up to 1 in 50, which is significantly higher than the C-level standard (≤1 in 50,000).
Cost-Effectiveness: C-level disc detainer locks are only 15–20% more expensive than B-level locks, yet they provide 10 times greater resistance to lockpicking.
Adaptability: Key mechanical parameters, such as cash box thickness (8–15 mm) and installation aperture (Φ12–16 mm), must be taken into account.

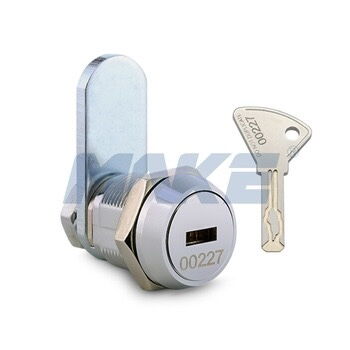

Certified to C-Level under GA/T 73-2015 'Mechanical Anti-Theft Lock' by the Ministry of Public Security, with a lockpicking resistance of ≥15 minutes and physical destruction resistance of ≥30 minutes.
Structural Design:
Nested parent-child disc detainer structure (12+8 composite discs)
Two-way long lock bolt (extended length ≥8mm)
Hardened anti-drill pin (HRC 60 or above)
Key System:
Four-dimensional milled-slot key
Tooth pattern combination: 3.4×10⁹ variations
Mutual opening rate: <0.0002%
Applications:
Bank ATM cash boxes
High-end safes

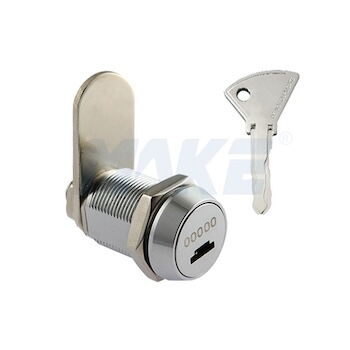

Innovative Design:
Simplified parent-child blade system (8+4 blade structure)
Dual-row internal tooth key with magnetic identification point
Safety Parameters:
1.6×10⁷ effective key combinations
Impact resistance torque ≥15 N·m
Saw resistance test: >5 minutes (carbide saw blade)
Applications:
Cash boxes for supermarket registers
Coin-operated devices

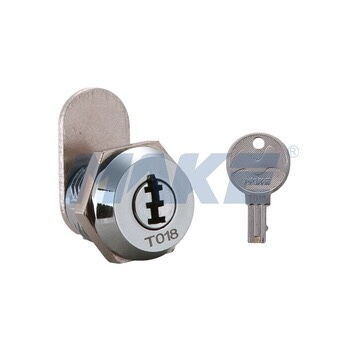

Mechanical Features:
Three-dimensional mortise-and-tenon linkage mechanism (tolerance: ±0.01 mm)
Compact design with a Φ12 mm mounting hole
Lock body made from 304 stainless steel
Management System:
Supports a hierarchical key system (1 management key + 200 user keys).
Lost keys can be instantly deactivated.
Applications:
Small smart cash boxes and vending machines.
|
Model |
Anti-technical Opening Time |
Anti-destruction Time |
Key System |
Installation Compatibility |
|
M1 |
≥30 minutes |
≥45 minutes |
Four-row milled teeth |
Φ14±0.5mm |
|
M3 |
≥15 minutes |
≥30 minutes |
Double-row internal teeth |
Φ12±0.3mm |
|
M4 |
≥20 minutes |
≥35 minutes |
Single-row mortise and tenon |
Φ12±0.1mm |
Security System Integration:
Supporting integration with electronic audit systems, and enabling traceable unlocking records
Customized Services:
Laser engraving for key head labels
Custom size adaptation (adjustable thickness: 8–25 mm)
Warranty Terms:
10-year warranty on core components
To obtain a C-level certified disc detainer lock approved by the Ministry of Public Security, please contact Make. Our engineers provide professional services, including cash box lock security assessments and installation guidance.
