As a leading mini keypad lock supplier in China, we offer high-quality locks designed for security, durability, and convenience. Crafted from premium zinc alloy, our keypad locks feature a robust powder-coated finish that ensures excellent resistance to corrosion and wear. With an IP65 waterproof and dustproof rating, these locks perform reliably in both indoor and outdoor environments. Powered by a CR2032 battery, they provide long-lasting operation with minimal maintenance. The compact vertical design makes installation simple and suitable for various applications such as lockers, cabinets, and storage boxes, delivering both practicality and modern aesthetics.
Technical Data

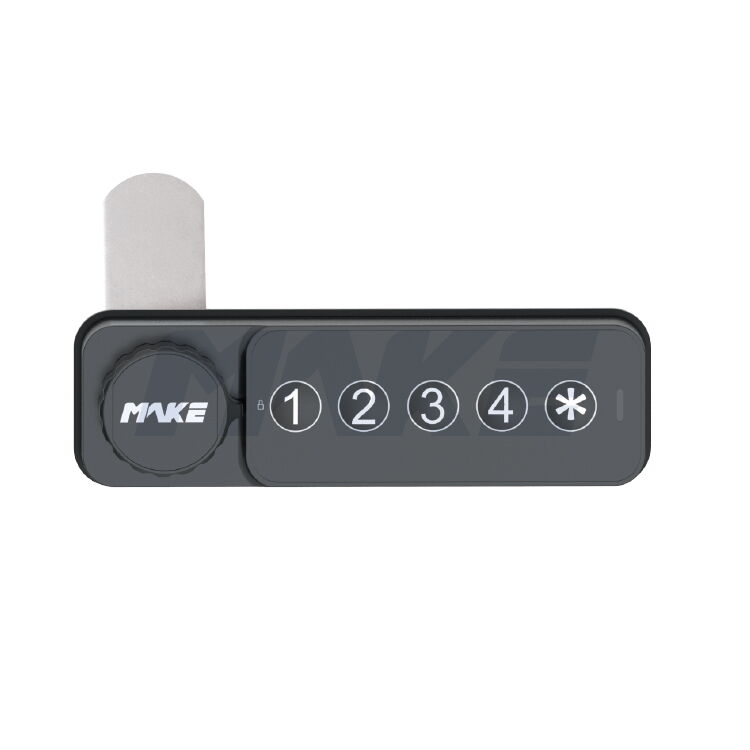

Type: Mini keypad lock
Material: Zinc alloy
Finished: Powder coating
IP Rating: IP65
Power Supply: 1 x CR2032
Function length(X): 20.5mm / 30.5mm
Mini Keypad Lock Features:
Ultra-slim and streamlined all-metal lock housing design.
Vertical version.
Three-level management: Master code, Manager code, User code.
Public mode and private mode can be switched freely.
Front-Accessible battery replacement.
Master key for emergency opening.

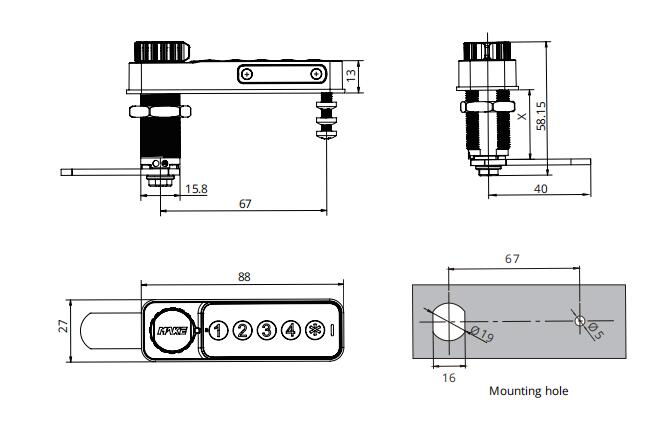

Easy installation and retrofit with standard 16 mm x 19 mm mounting holes.
Low voltage alarm.
