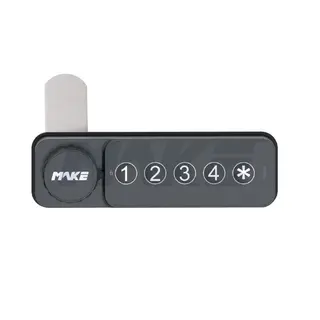

As a leading Zinc Alloy Mini Keypad Lock supplier in China, we offer a durable, high-performance locking solution designed for modern security needs. Crafted from premium zinc alloy with a powder-coated finish, this mini keypad lock provides robust corrosion resistance and long-lasting durability. With an IP65 waterproof and dustproof rating, it ensures reliable operation in various environments. Available in 20.5mm and 30.5mm function lengths, it is powered by a convenient CR2032 battery. Ideal for both new installations and retrofits, this compact lock features easy battery replacement, emergency master key access, and flexible multi-code management for superior security.
Technical Data
Type: Mini keypad lock
Material: Zinc alloy
Finished: Powder coating
IP Rating: IP65
Power Supply: 1 x CR2032
Function length(X): 20.5mm / 30.5mm
Features of Mini Keypad Lock
Ultra-slim and streamlined all-metal lock housing design.

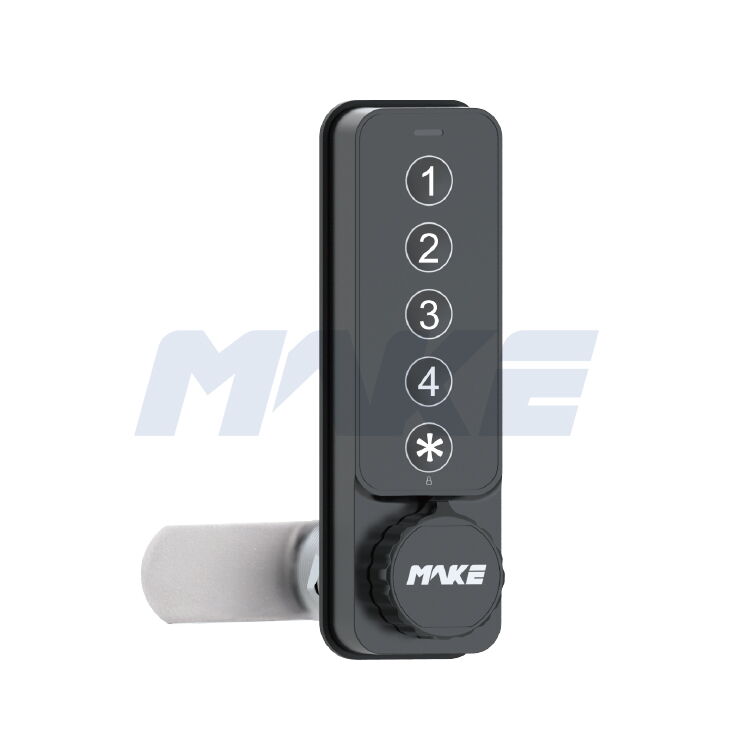

Vertical version.
Three-level management: Master code, Manager code, and user code.
Public mode and private mode can be switched freely.
Front-Accessible battery replacement.
Master key for emergency opening.

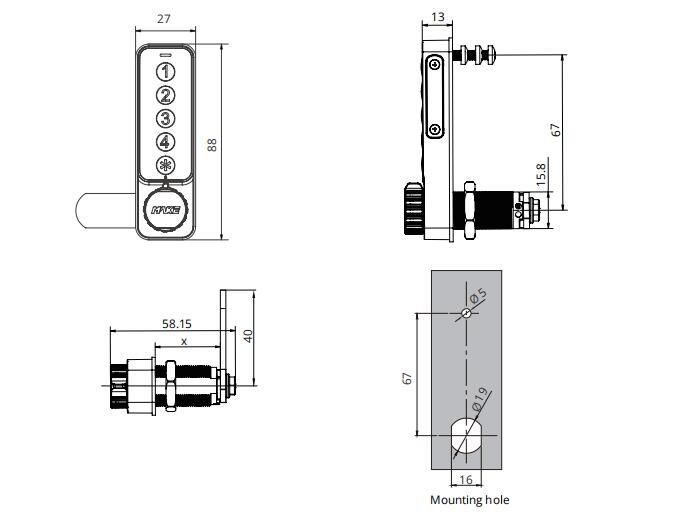

Easy installation and retrofit with standard 16 mm x 19 mm mounting holes.
Low voltage alarm.
