In an era where security demands are evolving rapidly, pin tumbler cam locks have emerged as one of the most versatile and reliable locking solutions across industries. From commercial cabinets to vending machines, lockers, and electronic enclosures, these locks provide a balanced combination of convenience, cost-efficiency, and robust security. As businesses, institutions, and households increasingly seek reliable yet accessible security solutions, the pin tumbler cam lock continues to play a pivotal role in safeguarding assets while offering user-friendly operation.
This in-depth report explores the technology, applications, market dynamics, benefits, challenges, and future trends surrounding pin tumbler cam locks, providing a detailed look at why they remain a mainstay in modern security systems.

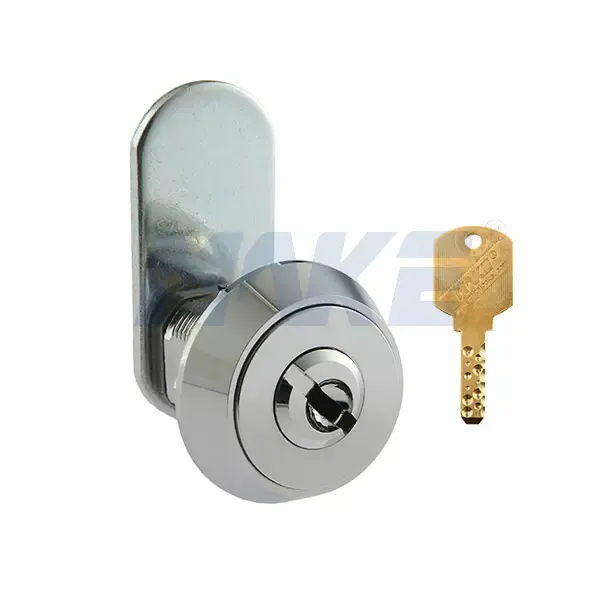

A pin tumbler cam lock is a type of mechanical lock commonly used for securing doors, drawers, cabinets, and other enclosures. The fundamental mechanism involves a series of pins of varying lengths inside a cylindrical plug. When the correct key is inserted, the pins align at the shear line, allowing the plug to rotate and operate the cam, which in turn locks or unlocks the device.
- Cylinder / Plug – The central rotating element where the key is inserted.
- Pins – Usually arranged in pairs of driver pins and key pins; they determine the lock's bitting and prevent rotation without the correct key.
- Spring Mechanism – Provides tension to keep pins in place and return the cam to its default position.
- Cam – The rotating latch attached to the back of the plug that engages with the locking surface.
- Housing / Shell – The outer casing that contains the cylinder and ensures alignment.
The pin tumbler design allows for high precision and key specificity, which makes it significantly more resistant to unauthorized access compared to simpler locks such as wafer or disc tumbler locks.
Pin tumbler cam locks are highly adaptable and found in a wide range of applications:
- Commercial Use: Office cabinets, lockers, file cabinets, vending machines, mailboxes, and utility boxes.
- Industrial Use: Electrical panels, equipment enclosures, and control cabinets.
- Residential Use: Furniture, personal safes, and storage compartments.
Their compact size, ease of installation, and ability to secure small spaces without requiring complex hardware make them ideal for these scenarios.
The pin tumbler system is inherently secure due to its unique key combinations and resistance to lock-picking. Advanced models may include:
- Master keying – allowing a single key to open multiple locks while maintaining individual lock access.
- Anti-drill pins – hardened pins to resist tampering.
- Anti-bump features – preventing lock bumping attacks.
These features make pin tumbler cam locks a preferred choice for applications requiring a balance of convenience and reliable security.
Users value pin tumbler cam locks for their simple operation. With the correct key, the lock rotates smoothly, engaging or disengaging the cam without requiring additional tools or complex mechanisms. This ease of use is particularly important in high-traffic environments such as offices, retail spaces, or shared facilities.
Pin tumbler cam locks come in various configurations to suit different needs:
The most common type, suitable for cabinets, lockers, and drawers. They are cost-effective, easy to install, and widely available.
These locks feature enhanced materials (hardened steel pins and plugs) and anti-tampering mechanisms, making them suitable for sensitive or high-value applications.
Keyed-Alike: Multiple locks can be opened by the same key, convenient for single-user or departmental access.
Master-Keyed: Allows hierarchical access, enabling management keys to open all locks while individual keys open only designated locks.
These models provide flexibility in installation and rotation angle, making them suitable for non-standard enclosures or panels with unique locking requirements.
Designed for outdoor or industrial environments, these locks feature corrosion-resistant materials such as stainless steel or brass, often with protective coatings to resist dust, water, and extreme temperatures.
The construction material of a pin tumbler cam lock affects durability, security, and environmental resilience:
- Brass: Corrosion-resistant, smooth operation, commonly used in residential and commercial settings.
- Zinc Alloy: Cost-effective with decent strength, often used in office furniture or light-duty applications.
- Stainless Steel: High resistance to corrosion and tampering, ideal for outdoor or industrial use.
- Hardened Steel: Offers superior strength and anti-drill protection for high-security applications.
Finishes vary as well, ranging from chrome, nickel, black oxide, or powder-coated surfaces, providing both aesthetic appeal and protection against wear and corrosion.
The core benefit lies in its mechanical precision. With properly cut keys, pin tumbler cam locks provide consistent security and resistance to tampering, offering peace of mind to users across sectors.
Compared to electronic or high-tech locks, pin tumbler cam locks are economical. They provide robust security without ongoing power requirements or complex maintenance, making them attractive for mass deployment in offices, schools, and retail environments.
These locks are modular in nature. Businesses can implement keyed-alike or master-keyed systems across hundreds of cabinets or enclosures, simplifying key management without compromising security.
With minimal moving parts and high-quality materials, pin tumbler cam locks can last for decades. Maintenance is straightforward, typically involving periodic lubrication to maintain smooth operation.
Pin tumbler cam locks are widely used in filing cabinets, desks, lockers, and storage units. Their ability to be keyed alike allows offices to simplify access control for employees while securing confidential documents or equipment.
In vending machines, display cases, and POS equipment, cam locks prevent theft and unauthorized access. Adjustable cam models make installation easy on varying machine types.
Industrial panels, electrical enclosures, and machinery cabinets rely on cam locks to restrict access to authorized personnel only. Weather-resistant and hardened options ensure durability in harsh environments.
Home cabinets, toolboxes, and personal safes often use pin tumbler cam locks for added security without bulky locking systems. Compact design and aesthetic finishes make them suitable for modern interiors.
Proper installation ensures long-term reliability:
- Panel Preparation: Ensure the mounting hole matches the lock size; typical diameters range from 16 mm to 22 mm.
- Alignment: The cam must rotate freely without obstruction. Adjustable cams allow fine-tuning for tight spaces.
- Keying Strategy: Decide between keyed-alike, master-keyed, or individual keying depending on user access needs.
- Lubrication: Use graphite or dry lubricant to maintain smooth pin operation. Avoid oil-based lubricants that attract dust.
- Periodic Checks: Inspect for signs of wear, corrosion, or tampering, particularly in high-use or outdoor installations.
The pin tumbler cam lock market has evolved with changing security requirements and technological trends:
While traditionally mechanical, some cam locks now incorporate:
- Electronic access logs
- Keyless entry modules
- Hybrid mechanical-electronic designs
This enables tracking of usage, limiting access during specific hours, and remote management.
Manufacturers offer tailored key codes to reduce duplication risks. High-security master-keyed systems are increasingly used in large-scale deployments, such as schools, hotels, or data centers.
The demand for more robust locks has led to:
- Hardened steel pins and plugs
- Anti-drill pins
- Anti-pull and anti-bump designs
These improvements enhance security without increasing complexity for end users.
Brass, zinc, and stainless steel cam locks are increasingly produced under environmentally friendly processes, with recyclable materials and reduced toxic coatings, aligning with sustainability goals.
While pin tumbler cam locks offer strong protection, users must remain aware of potential risks:
- Key Duplication: Only authorized copies should be produced to maintain security.
- Lock Picking & Bumping: High-quality models with anti-bump pins mitigate these risks.
- Wear & Corrosion: Regular maintenance and appropriate material selection are critical for long-term reliability.
By pairing quality locks with smart key management and routine inspections, businesses and homeowners can maximize security and durability.
The market for pin tumbler cam locks is projected to remain strong due to:
- Continued Demand in Commercial & Residential Sectors – Offices, retail, and industrial facilities continue to require reliable, cost-effective locking solutions.
- Hybrid Solutions – Integration with smart systems offers both mechanical reliability and digital access control benefits.
- Global Expansion – Growing industrialization, urbanization, and security awareness in emerging markets drive demand for standardized and high-security locks.
- Innovation in Materials & Manufacturing – Improved corrosion resistance, hardened alloys, and anti-tampering technologies will define the next generation of pin tumbler cam locks.
The combination of simplicity, reliability, and adaptability ensures that pin tumbler cam locks will remain a foundational element of security solutions for decades to come.
Pin tumbler cam locks exemplify the enduring value of mechanical precision and functional simplicity in security systems. Their compact design, robust mechanism, and adaptability make them ideal for applications ranging from commercial cabinets to industrial equipment, vending machines, and residential storage.
With ongoing innovations in materials, keying systems, and integration with smart technologies, pin tumbler cam locks continue to evolve to meet modern security challenges. For businesses, homeowners, and institutions seeking dependable, cost-effective, and versatile locking solutions, these locks provide a reliable balance of security, convenience, and operational efficiency — proving that even in a digital age, traditional mechanical locks remain indispensable.
